SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m

Brand Name : Ebocom/OEM

Certification : ISO 9001

Place of Origin : China

MOQ : 1000 pcs

Price : 0.33-0.42 USD/piece

Payment Terms : T/T

Supply Ability : 2000 pcs/day

Delivery Time : 5-10 work days (usually)

Packaging Details : Plastic Bags + Carton

Fiber Type : SM G652D/G657A1/G657A2

Fiber Brand : YOFC, ZTT, FIBERHOME

Tight Buffer : PVC/LSZH

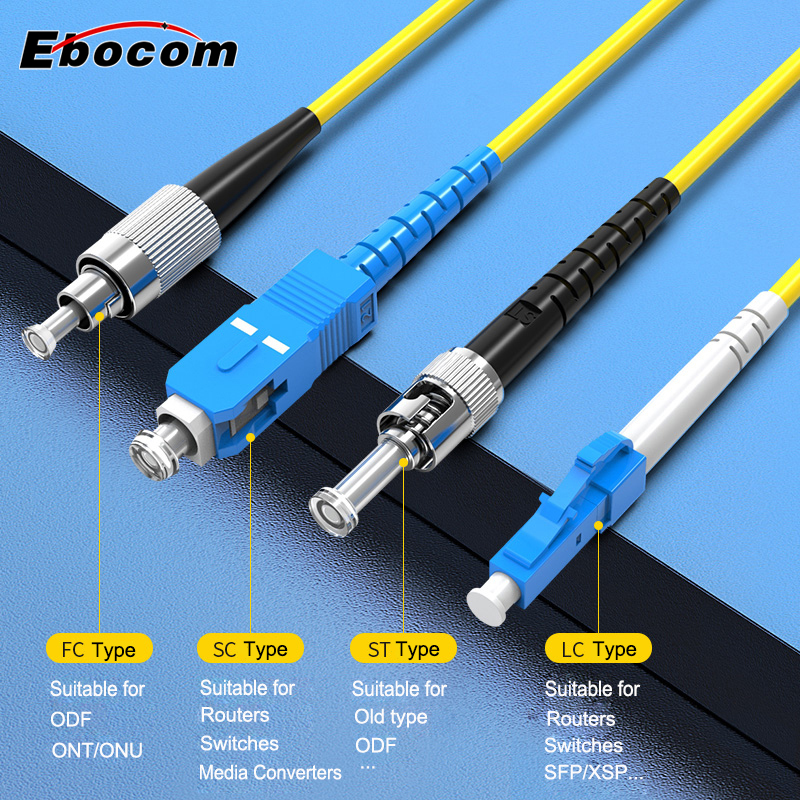

Connector : SC/UPC(APC), LC/UPC(APC), FC/UPC(APC) ST

Sheath : Yellow LSZH/PVC (can customize flame retardant)

Diameter : 2.0mm/3.0mm

Simplex : Simplex

Insertion Loss : ≤ 0.2 dB

Strength Member : Aramid Yarn/ Polyester Yarn

Length : 1m, 1.5m, 3m, 5m, 10m, 50m, 100m (can customize)

Package : Plastic Bags + Carton

Contact Now

Optic Fiber Patch Cord

Optical fiber patch cord is a detachable connection between optical fibers. It precisely connects the two end faces of optical fibers so that the light energy output by the emitting optical fiber can be coupled to the receiving optical fiber to the maximum extent. And minimize the impact on the system due to its intervention in the optical link.

SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m

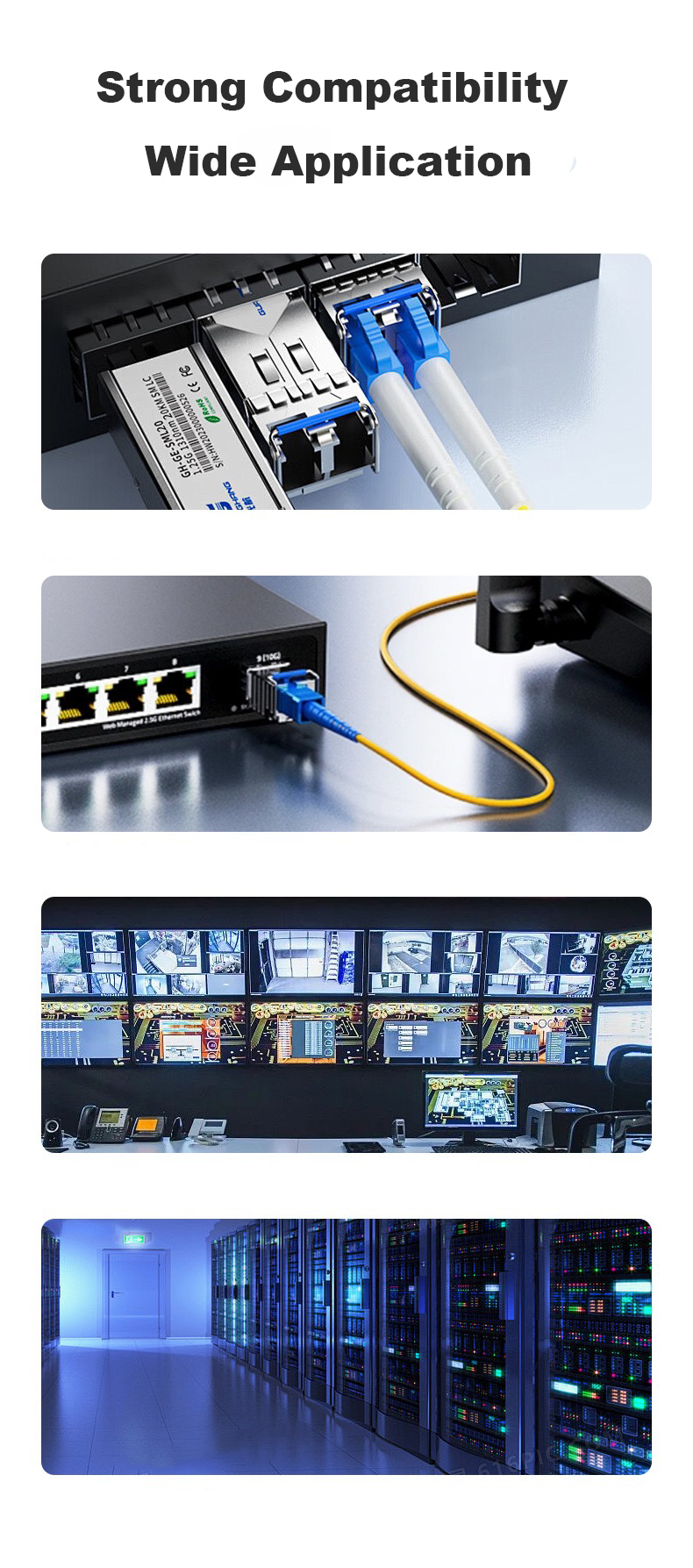

Applications:

  • Fiber optic communication system
  • LAN, Datacenter, CATV
  • Optical fiber testing equipment
  • Telecommunication network

SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m

Characteristics:

- Different type of connectors are available;

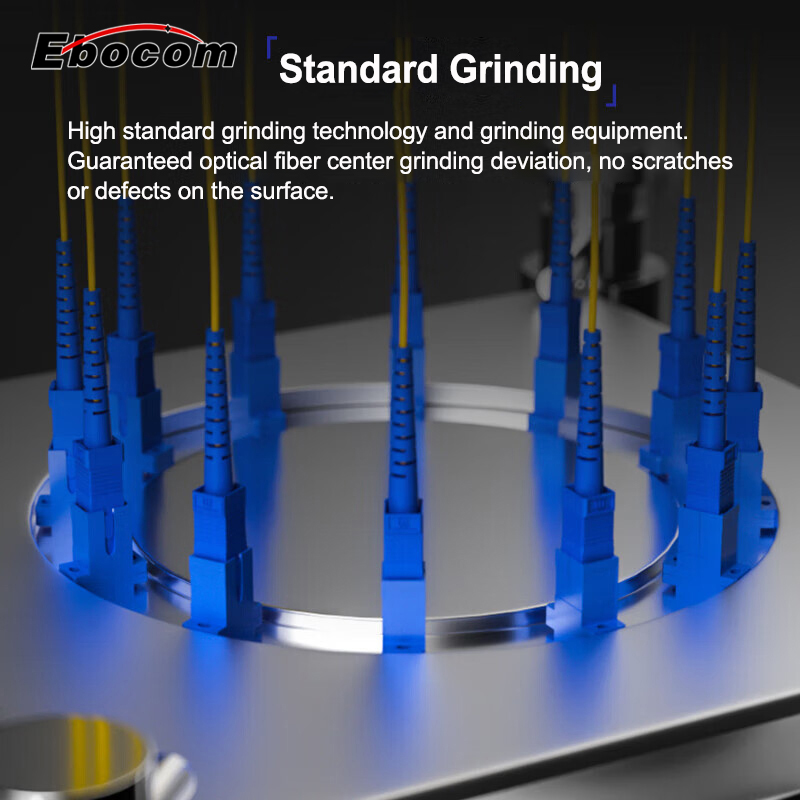

- PC/APC/UPC polish types;

- Low insertion loss, high return loss;

- Repeated insertion and removal performance is excellent and easy to use;

- Cable diameter: 2.0mm, 3.0mm.

SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m

Technical Parameters:

Mode Type Single Mode Multi Mode
Grinding UPC/APC/PC PC

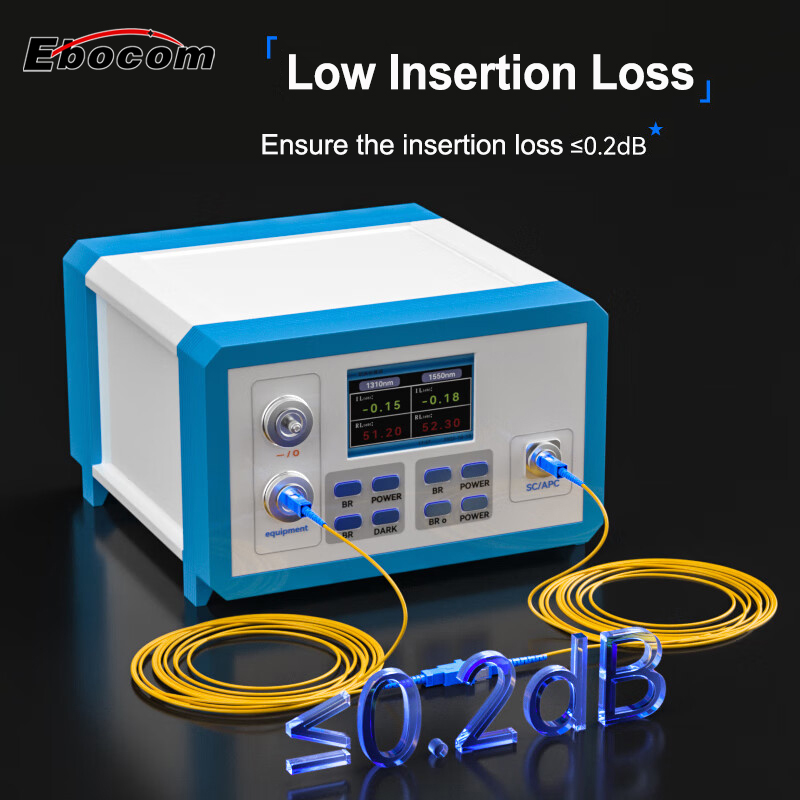

Insertion loss ≤0.2dB ≤0.3dB/0.5dB
Return Loss

PC≥45dB

UPC≥50dB

APC≥60dB

 /
Repetitive ≤0.2dB
Interchangeability ≤0.2dB
Temperature Range -40℃~+80 ℃

(Remark: The above parameters are for reference only)



SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m

Sheath:

Environmentally friendly low smoke halogen-free sheath (LSZH). Abrasion and corrosion-resistant, and odor-free.

If required, we can also support flame retardant LSZH or PVC sheath.

SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m
