Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber

Name: Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Brand: Ebocom/OEM
Price: 1 USD

Buy cheap Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber product

Brand Name : Ebocom/OEM

Model Number : gjyxfch 2B1

Certification : ISO TLC

Place of Origin : Shandong,China

MOQ : 2000M

Price : EXW ≥2000m $0.016/M ≥5000m $0.014/M

Payment Terms : T/T

Supply Ability : 50000KMS/day

Delivery Time : 5-8 day

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Product name : GJYXCH/GJYXFCH

fiber optical core : G652D, G657A1, G657A2

Fiber Type : SM single mode/ MM multi mode

Jacket sheath : PVC, LSZH, PE

Contact Now

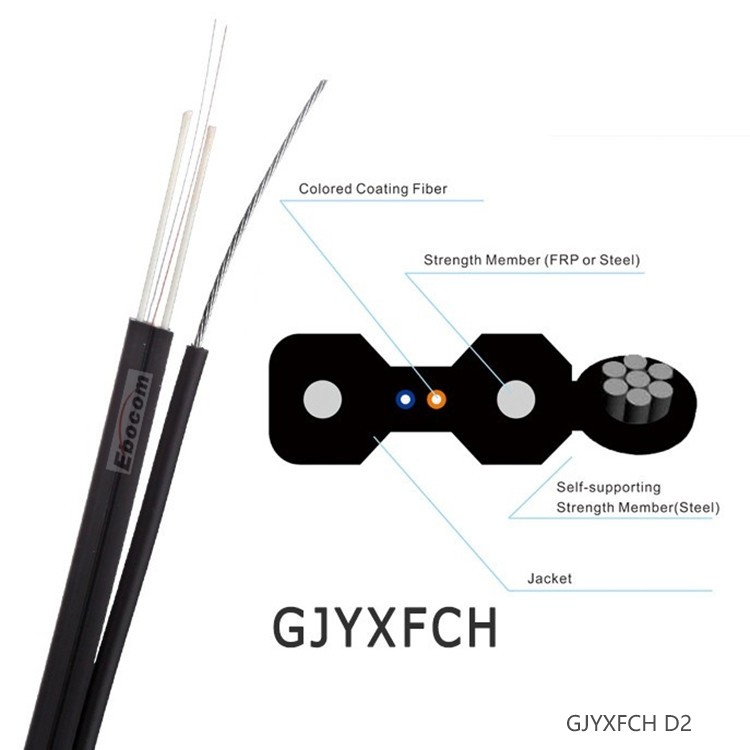

The self-supporting FTTH lead-in cable consists of one or two single-mode fibers (G.657A). The cable is protected by two parallel reinforcement pieces of metal, steel wire and LSZH outer sheathing. The cable is designed for outdoor installation and is ideal for connections between domed enclosures and small residential units/warehouses and detached villas.

Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber

Applications:

used as an outdoor to indoor access cable in the access network or user resident network
Used as access building optical cable in the resident distribution system, especially suitable for indoor or outdoor overhead access wiring.

Features:

Light weight and compact structure
Two parallel FRP reinforcements for optimal fiber optic protection
Low bend sensitivity fiber (G.657A) provides high bandwidth and excellent communication transmission
Low smoke zero halogen (LSZH), non-toxic, self-extinguishing sheath

Item		Parameters
Fiber	Color	All colors display
Fiber	Number of cores	2
Strength member	Material	Phosphating steel wire
Strength member	Diameter (mm)	0.4
Messenger wire	Material	Phosphating steel wire
Messenger wire	Diameter (mm)	0.9
Outer jacket	Material	LSZH(Oxygen index≥25%)
Outer jacket	Color	Black
Cable diameter (Rip off the messenger wire) (mm)		2.0±0.1*3.0±0.1
Min. bending radius(Rip off the messenger wire)	Static	15mm
Min. bending radius(Rip off the messenger wire)	Dynamic	30mm
Tensile performance	Short term	600N
Crush	Short term	2200N/100mm

Product Tags:

1km ftth fiber drop cable

2 Core ftth fiber drop cable

Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber Images
